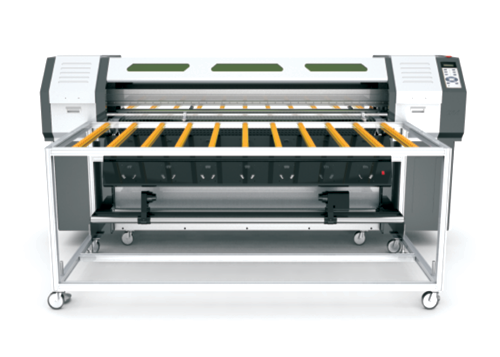

R 180
E |
|
|
|
Technical Specifications |
|
|
|
Print Head |
Plezo Electric Print head D X 5
|
|
Number of print head |
Two Heads |
|
Print Resolution |
360 X 720, 360 X 1080, 720 X
720dpi |
|
Print Speed |
4Pass 30m2/hr, 6PASS
20m2/hr, 8PASS 15m2/hr 16PASS 8m2/hr |
|
Print width |
30mm |
|
Ink |
Eco-solvent , UV ink |
|
Color |
4/6/8 color ( C,M,Y,K / C,M,Y,K
K,L,C, LM / C,M,Y,K LLK ) |
|
Ink capacity |
0.25L |
|
Ink Supply Systems |
Ink Chamber |
|
Rip Software |
Maintop, PhotoPRINT, Wasatch
|
|
Maximum Print Width |
1800mm ( 70') |
|
Auto Print Cleaning System
|
Auto Cleaning System With anti
clogged flash spray & moisturizing function |
|
Media |
PVC, PP, Soft materials, Textiles, PVC board, Hollow board, Metal, Wall
paper, Leather, Glass , Fabric & Acrylic. |
|
Media Adsorption |
Independent intelligent air
suction system with 3 sections control . |
|
Data Transmission connector
|
Hi-USB2 0/3. 0 |
|
Dimension / weight |
3160 X 1130 X 1130mm ( L X W X H
) 1000kg |
|
Packing Size |
3300 X 1045 X 1500mm ( L X W X H
) |
|
Power Size |
3300 X 1045 X 1500mm ( L X W X H
) |
|
Power |
AC220V, 50Hz/60Hz |
|
Operation environment |
Temperature : 18-320C
Humidity : 46-65%rh |
|
|
